ch7110
- 如果您对产品有相关疑问，或者遇到任何，您都可以注册网站帐号，
- 然后到利来app官网的技术支持论坛去提问寻求帮助。
features
|
|
|
|
lcompliant with hdmi specification version 2.0 and version 1.4 lsupport up to 600 mhz tmds clock for video transport with resolution up to 4kx2k@60hz ldedicated 6gbps clock and data recovery module (cdr) integrated ladaptive equalizer to compensate for cable, pcb and/or connector losses, and support up to 16.5 db boost lconfigurable pre-emphasis on output driver support lac-coupled and dc-coupled input support l3.3v and 1.2v power supply linput tmds/hpd signal detection support and automatic power down management lbandgap resistor free lactive ddc buffer lmcu embedded to handle the control logic lsupport device boot up by automatically loading firmware from embedded rom liic slave interface and hdmi ddc interface are available for debug and firmware update llow power architecture lrohs compliant and halogen free package lhbm 6kv esd performance loffered in 40-pin qfn package (5 x 5mm)
|
|
|
general description |
|
|

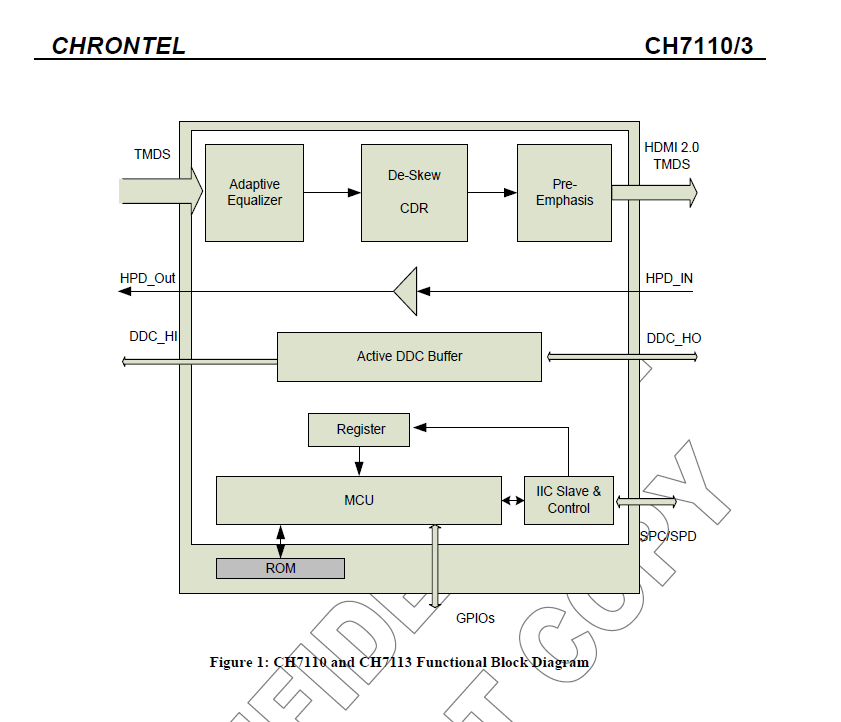

chrontel’s ch7110 is innovative, low-power, high performance semiconductor devices that re-timing and improve the input tmds signal to match the hdmi 2.0 specification. these devices integrate programmable equalizer, 6gbps tmds clock and data recovery (cdr), accurate internal oscillator, high performance pll and configurable pre-emphasis module, are specially designed to target the hdmi 2.0 retime/repeater market segments. a sophisticated active ddc buffer is also employed by ch7110 and ch7113, to achieve the losses compensation of hdmi ddc channel and improve the stability and robust of the ddc communication |
|
